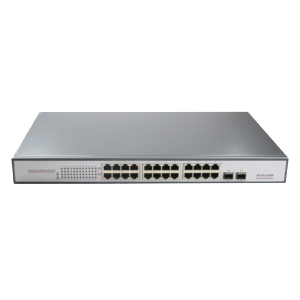

24 Port PoE Switch EW-33024PFU
and 2*1000M SFP solt ports. Port 1-24 can support IEEE 802.3af/at standard PoE power supply.
single port PoE power reaches 30W, and the maximum PoE output power is 250W. As a PoE
power supply device, it can automatically detect and recognize the power receiving equipment that
meets the standard and supply power through the network cable. It can supply power to POE
terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through
network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, park, attraction, supermarket, factory quarter and small and medium-
sized enterprises to form a cost-effective network.
Unmanaged model, plug and play, no configuration, easy to use.
◼
Full gigabit access, gigabit SFP port uplink
◇ All series supports “gigabit Ethernet port and gigabit SFP fiber port ” combination, which
enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire speed forwarding .
◇ Support full duplex based on IEEE802.3x and half duplex based on backpressure .
◼
Intelligent PoE power supply
◇ 24*10/100/1000Base-T RJ45 ports support PoE power supply to meet the needs of PoE power
supply in security monitoring, teleconferencing systems, and wireless coverage.
◇ Conforms to the IEEE 802.3af/at PoE power supply standard, automatically recognizes PoE
devices for power supply, without damaging non-POE devices. The maximum POE output
power of the entire device reaches 250W, and the maximum POE output power of a single port
is 30 W.
◇ The PoE port supports the priority mechanism. When the remaining power is insufficient, the
power supply of the high-priority port is preferentially guaranteed to prevent the device from
being overloaded.
◼
The equipment is stable and reliable
◇ The host has low power consumption, no fan, galvanized steel metal shell, excellent heat
dissipation, and ensure stable operation of products.◇ The equipment fully meets the requirements of CCC; CE, FCC and RoHS safety regulations,
and is safe and reliable.
◇ Self-developed power supply, high redundancy design, provides long-term stable PoE power
output.
◼
Easy to operate
◇ Plug and play, no configuration, simple and convenient.
◇ The user can easily understand the working status of the device through the power indicator
(PWR), port status indicator, and PoE operation indicator.
DIMENSION
