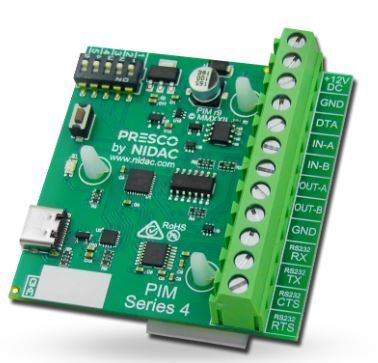

PRESCO - INTERFACE MODULE - SERIES 4 NEW FEATURE The PIM series 4 with latest revision 4f is now capable of simulating the output of the now discontinued "Indala FlexPass Readers with TTL Output" using a compatible Wiegand output reader for card reading. Using the free PIMs4 v1.4 software, available from www.nidac.com, simply set RS232 Send Data Config (mem 003) to "Start plus Code + CR LF + End" to enable the output compatibility and set DIP switch 2 to On, 1, 3, 4 & 5 Off. If using Wiegand format cards other than standard 26-bit Wiegand the "Wiegand Receive" settings will need to be changed to suit the format being used.
$129.48
